Improved Transport Mode Detection

How could POSMOs Transport Mode Detection be improved further using publicly available data

Abstract

Computational Movement Analysis is a widely studied field that aims to analyse and validate trajectory data, to identify correlations, patterns and outliers in different forms of movement.

GPS data forms an elementary baseline for the analysis of movement patterns in various applications. This project focuses on Transport Mode Detection (TMD) using GPS tracking data from the POSMO app. This project implements algorithms in R for data processing, analysis and visualisation using publicly available context data such as public transport networks. The results demonstrate the effectiveness of multi-criteria analysis (MCA) for TMD even with limited optimisation of the underlying algorithms. Our project shows that an improvement of POSMOs TMD could be possible with our approach, needing an inclusion of other algorithms and data. The accuracy against ground truth, already showed a high comparability to POSMO, in bus detection the results were even better.

The project, while having some limitations in the implementation, presents ideas for further improvements in TMD from POSMO data, including the addition of height modelling, accelerometer data and supervised learning algorithms.

Introduction

Show the code

## 1. Information

### 1.1 Project Info

#Module: Patterns and Trends HS22

#Course: Semester Project

#Lecturer: Prof. Dr. Patrick Laube

#Assistent Lecturers: Nils Ratnaweera & Dominic Lüönd

#Autors: Valentin Hett (hettval1) & Lukas Bieri (bieriluk)

#Date: 30.06.2023

#Info: Most visualizations have been commented out due buffer overflow, with the expection of the figues in this report.

Computational Movement Analysis is a widely researched field that uses algorithms and visual techniques to analyse and validate trajectory data to detect relationships, patterns and outliers in movement. However, current visualization systems predominantly target multilevel applications and macro-level results. GPS tracking is becoming more and more important in Movement Analysis. One major limitation of GPS is, that it can only record positions and cannot provide context or semantics (Van der Spek et al., 2009). Even apps with support functions, where people are asked to fill in a movement protocol often leads to incomplete data, due to laziness or forgotten memories (Sadeghian et al., 2022).

The utilized tracking app POSMO records, analyses and visualizes trajectories from mobility data. POSMO has already implemented algorithms to determine the transport modes (TM) for recorded trajectories. Like any GPS recording, there is noise (unintended datapoints) and variability, which can lead to incorrect conclusions. Accurate Transport Mode Detection (TMD) is necessary for many movement analysis tasks, e.g. to improve public transport planning or to find the most fuel-saving routes by car. There are many different approaches found in literature review to TMD. Sadeghian et al. (2022) showed that accurate TMD was possible using a combination of unsupervised and supervised leaning algorithms with a spatial multi criteria analysis (MCA) incl. context maps.

For this project, we set out to answer the following research questions:

1. Can Transport Mode Detection (TMD) for the POSMO tracking data be improved using the stepwise procedure described in Sadeghian et al. (2022) and with public transport data?
2. Where do we see potential for improvement with POSMOS TMD from our improvement trials and literature?

Considering the constrained resources available for this semester project, including time and computational power, the primary goal was changed. Instead of revolutionising TMD, the project goal is to explore different approaches from literature by implementing them and brainstorm potential ways to improve TMD from POSMO data. Additionally, it is assumed that not all these approaches can be implemented fully in the form of algorithms within the framework of this project.

Show the code

### 1.2 Software used

#R version 4.2.1 (2022-06-23 ucrt) -- "Funny-Looking Kid" Copyright (C) 2022 The R Foundation for Statistical Computing Platform: x86_64-w64-mingw32/x64 (64-bit)

#RStudio 2023.06.0+421 "Mountain Hydrangea" Release (583b465ecc45e60ee9de085148cd2f9741cc5214, 2023-06-05) for windows Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) RStudio/2023.06.0+421 Chrome/110.0.5481.208 Electron/23.3.0 Safari/537.36

Material and Methods

The POSMO app saves tracking data in its online datamap tool, where it can be downloaded. The app already assigns a transportation mode incl. train, car, bus, walking and even airplane (Genossenschaft Posmo Schweiz, 2023).

For this research project, only the transport mode walking (incl. running), biking, train (incl. gondolas & cable cars) and buses (incl. trams) are considered and compared. Ships and aerial vehicles were not included. The system boundaries were set for the canton of Zurich.

For the different TMD improvement approaches we mostly followed the method set out by Sadeghian et al. (2022) with a focus on MCA.

The preprocessing, analysis and visualization is done in R (4.2.1/2022-06-23) using RStudio (2023.06.0+421) and the packages: “ggplot2”, “dplyr”, “tidyr”, “readr”, “zoo”, “data.table”, “sf”, “terra”, “tmap”, “stats”, “randomForest”, “lubridate”, “trajr”, “gstat”, “geosphere”, “nngeo”, “vegan”, “hms”, “tibble”, “useful”, “DescTools”, “utils” and “janitor”. Last update of these packages was on the 23.06.2023.

Show the code

# Install (if necessary) and load all necessary packages with this function

ipak <- function(pkg){
  new.pkg <- pkg[!(pkg %in% installed.packages()[, "Package"])]
  if (length(new.pkg))
    install.packages(new.pkg, repos = "http://cran.us.r-project.org",
                     dependencies = TRUE)
  sapply(pkg, require, character.only = TRUE)
}

packages <- c("ggplot2", "dplyr", "tidyr", "readr", "zoo", "data.table", "sf", "terra", "tmap", "stats", "randomForest", "lubridate", "trajr", "gstat", "geosphere", "nngeo", "vegan", "hms", "tibble", "useful", "DescTools", "utils", "janitor")

ipak(packages)

#Set the tMap mode to "view"
tmap_mode(mode = "view")

All necessary data sets are loaded into R, reprojected (where necessary) and filtered. An exploratory data analysis is done for the POSMO data to determine the appropriate settings for data cleaning and outlier removal.

Show the code

## 3. Preprocessing

### 3.1 Import, check and transport data

#### 3.1.1 Boundries
# Import Boundries data set
st_layers("datasets/swissTLMRegio_BOUNDARIES_LV95.gdb")
kanton_zh <- st_read("datasets/swissTLMRegio_BOUNDARIES_LV95.gdb", layer = "TLMRegio_KANTONSGEBIET")
kanton_zh <- kanton_zh |>
  filter(NAME == "Zürich")

#Check if the coordinate system is correctly assigned
st_crs(kanton_zh)

#Visualize to verify
# tm_shape(kanton_zh) +
#   tm_polygons() +
#   tm_basemap("Esri.WorldImagery")

#### 3.1.2 Posmo data

#Import raw unverified set
posmo <- read_delim("datasets/posmo_2023-01-01T00-00-00_2023-06-16T23-59-59_unvalidated_def.csv", delim = ",")

#Import the manually verified data set (in the POSMO datamap online tool)
posmo_valid <- read_delim("datasets/posmo_2023-01-01T00-00-00_2023-06-16T23-59-59_validated_def.csv", delim = ",")

#Check if the import got the Time Zone for the POSIXct colum correct
str(posmo)
str(posmo_valid)
Sys.time()

#Store your data frame as a spatial data frame and transform the coordinate system from WGS84 (i.e. EPSG 4326) to CH1903+ LV95 (EPSG 2056) and filter it to the canton of Zurich (intersect)
posmo <- st_as_sf(posmo, coords = c("lon_x","lat_y"), crs = 4326) |>
  st_transform(2056) |>
  st_filter(kanton_zh, .pred = st_intersects)

#Same for the validated data
posmo_valid <- st_as_sf(posmo_valid, coords = c("lon_x","lat_y"), crs = 4326) |>
  st_transform(2056) |>
  st_filter(kanton_zh, .pred = st_intersects)

#Check the results in a table and by visualization
head(posmo)
head(posmo_valid)

# tm_shape(posmo) +
#   tm_dots(col = "red") +
#   tm_basemap("Esri.WorldImagery")
# tm_shape(posmo_valid) +
#   tm_dots(col = "red") +
#   tm_basemap("Esri.WorldImagery")

#Extract the coordinates into separate colums to use them for euclidean distance calculation
posmo_coordinates <- st_coordinates(posmo)
posmo <- cbind(posmo, posmo_coordinates)

#Same for the validated data
posmo_valid_coordinates <- st_coordinates(posmo_valid)
posmo_valid <- cbind(posmo_valid, posmo_valid_coordinates)

#### 3.1.3 Railway routes data

#Check the layer of the gdb
st_layers("datasets/swissTLMRegio_Produkt_LV95.gdb")

#Import the Railway Layer
train_routes <- st_read("datasets/swissTLMRegio_Produkt_LV95.gdb", layer = "TLMRegio_Railway")

#Check if the coordinate system is correctly assigned
st_crs(train_routes)

#Filter for "Normalspurbahn", "Schmalspurbahn", "Standseilbahn", "Seilbahn", "Gondelbahn", "Sessellift" and "Autoverlad", exclude "Güterbahn", "Museumsbahn", "Bahn ausser Betrieb", "Bahn im Bau" and limit it to the canton of zurich (intercest)
train_routes <- train_routes |>
  filter(OBJVAL != 3 & UNDERCONST == 0) |>
  st_filter(kanton_zh, .pred = st_intersects)

#add train stops
train_stops <- st_read("datasets/swissTLMRegio_Produkt_LV95.gdb", layer = "TLMRegio_Terminal")
train_stops <- train_stops |>
  filter(OBJVAL == 1) |>
  st_filter(kanton_zh, .pred = st_intersects)

#Visualize to verify
# tm_shape(train_routes) +
#   tm_lines(col = "red") +
#   tm_shape(train_stops) +
#   tm_dots(col = "red") +
#   tm_basemap("Esri.WorldImagery")

#### 3.1.4 Bus & tram data

#Check the layer of the gpkg
st_layers("datasets/Linien_des_offentlichen_Verkehrs_-OGD.gpkg")

#Import the layer with all the public transport lines (filterd at download to exclude railway "S-Bahn")
bus_routes <- st_read("datasets/Linien_des_offentlichen_Verkehrs_-OGD.gpkg", layer = "ZVV_LINIEN_L")

#Check if the coordinate system is correctly assigned
st_crs(bus_routes)

#Filter to the canton of zurich (intersect). This does not exclude segments that start in the canton and leave it, but that doesn't seem to be an issue for public transport as the canton boder is arbitrarily set system boundry
bus_routes <- bus_routes |>
  st_filter(kanton_zh, .pred = st_intersects)

#Visualize to verify
# tm_shape(bus_routes)+
#   tm_lines()+
#   tm_basemap("Esri.WorldImagery")

#### 3.1.5 Road network data

#Check the layer of the gdb
st_layers("datasets/swissTLMRegio_Produkt_LV95.gdb")

#Import the layer with all major roads and filter it for the canton of zurich
roads <- st_read("datasets/swissTLMRegio_Produkt_LV95.gdb", layer = "TLMRegio_Road")
roads <- roads |>
  st_filter(kanton_zh, .pred = st_intersects)

#Visualize to verify
# tm_shape(roads) +
#   tm_lines(col = "red") +
#   tm_basemap("Esri.WorldImagery")

### 3.2  Getting an overview & EDA

#### 3.2.1 For how long were the individual tracked? Are there gaps? Were all individuals tracked concurrently or sequentially?

#Check the posmo data by inspecting it in detail
head(posmo)
tail(posmo)
head(posmo_valid)
tail(posmo_valid)

class(posmo$datetime)
class(posmo_valid$datetime)
tz(posmo$datetime)
tz(posmo_valid$datetime)

#### 3.2.2 How many individuals were tracked

# Make sure all data from one individual
posmo$user_id |> unique()

#### 3.2.3 List of all transport modes

#Create a list of all transport modes in the POSMO data incl. numerical codes fotr the TMs
unique(posmo$transport_mode)
unique(posmo_valid$transport_mode)

numbers <- c(0, 1, 2, 3, 4, 5, 6, 8)
names <- c("Unkonwn", "Walk", "Car", "Bus", "Train", "Bike", "Tram", "Other")
transport_mode <- c(NA, "Walk", "Car", "Bus", "Train", "Bike", "Tram", "Other1")
all_transport_modes <- data.frame(numbers, names, transport_mode)
all_transport_modes

#Join the Transport Modes with the raw data to have the numerical codes for TM in the data frames
posmo <- posmo |>
  left_join(all_transport_modes, by = "transport_mode") |>
  rename(tm_unval = numbers)

posmo_valid <- posmo_valid |>
  left_join(all_transport_modes, by = "transport_mode") |>
  rename(tm_val = numbers)

The Public Transport data is sourced from Open Data Platforms and governmental GIS data bases. The project uses the railway and boundary data from swissTLMRegio (swisstopo, 2022a, 2022b) and bus data from the Zurich Transport Network (ZVV) (Verkehrsbetriebe Zürich VBZ, 2022). The project uses POSMO tracking data from one student between 12. April 2023 and 16. June 2023. This data set was manually validated with ground truth for TM by memory using the POSMO datamap online tool. The segmentation of trajectories was not changed for validation from the POSMO segmentation due to the high workload of this procedure.

Show the code

#Visualize the used kontext data into one figure
figure_1 <- tm_shape(kanton_zh) +
  tm_borders(col = "red",lwd = 3) +
  tm_shape(train_routes) +
  tm_lines(col = "green") +
  tm_shape(roads) +
  tm_lines(col = "black")+
  tm_shape(bus_routes) +
  tm_lines(col = "blue")+
  tm_add_legend(type = "fill",
    labels = c("Canton Zurich", "Railway lines", "Major Roads", "Bus/Tram routes"),
    col = c("red", "green", "black", "blue"),
    border.lwd = 0.5,
    title = "Data used for MCA")

figure_1

Figure 1: Overview over the context data used for MCA (swisstopo, 2022a, 2022b; Verkehrsbetriebe Zürich VBZ, 2022)

Duplicate time stamps are removed and the data is resampled with a constant 10s interval between points (incl. for the validated data for comparison) by linear interpolation for coordinated using the “zoo“-package (Zeileis et al., 2023).

Show the code

### 3.3  Filtering & Outlier detection

#### 3.3.1 Filter the data for testing & checkin the method

#For writing and checking the algorithm, choose and filter for 1 day where many different places where visited using different TMs. Later this Filter is removed, and the data is filters so both data sets are the same lenth.
posmo_filter <- posmo  |>
    filter(as.Date(datetime) < "2023-06-16")

posmo_valid_filter <- posmo_valid |>
    filter(as.Date(datetime) < "2023-06-16")

head(posmo_filter)
tail(posmo_filter)
head(posmo_valid_filter)
tail(posmo_valid_filter)

#--> Full duration to compare: 2023-04-11 10:50:01 till 2023-06-15 22:00:00

#visualize the different days for EDA

# ggplot(posmo_filter, aes(X,Y, color = datetime)) +
#   geom_point() +
#   geom_path() +
#   coord_equal()
#
# tm_shape(posmo_filter) +
#   tm_dots() +
#   tm_basemap("Esri.WorldImagery")
#
# tm_shape(posmo_valid_filter) +
#   tm_dots() +
#   tm_basemap("Esri.WorldImagery")

#### 3.3.2 Remove deuplicate time stamps

#Remove values with the same time stamp by summarising unsing the mean. For the tm, the most common TM amoung the same timestamp is used (Mode)
posmo_filter_clean <- posmo_filter|>
  st_drop_geometry()|>
  select(datetime, X, Y, tm_unval)|>
  mutate(
    datetime = unclass(datetime)
    ) |>
  group_by(datetime)|>
  summarise(
    X = mean(X, na.rm = TRUE),
    Y = mean(Y, na.rm = TRUE),
    tm_unval = Mode(tm_unval, na.rm = TRUE)
  ) |>
  ungroup()|>
  mutate(
    datetime = as.POSIXct(datetime, origin = '1970-01-01', tz = "UTC"),
    tm_unval = replace_na(tm_unval, 0)
    )|>
  st_as_sf(coords = c("X","Y"), crs = 2056, remove = FALSE)

n_distinct(posmo_filter_clean$datetime)
n_distinct(posmo_filter$datetime)

#The same removal of double timestamps is done with the validated data for comparability
posmo_valid_filter_clean <- posmo_valid_filter|>
  st_drop_geometry()|>
  select(datetime, X, Y, tm_val)|>
  mutate(
    datetime = unclass(datetime)
    ) |>
  group_by(datetime)|>
  summarise(
    X = mean(X, na.rm = TRUE),
    Y = mean(Y, na.rm = TRUE),
    tm_val = Mode(tm_val, na.rm = TRUE)
  ) |>
  ungroup()|>
  mutate(
    datetime = as.POSIXct(datetime, origin = '1970-01-01', tz = "UTC"),
    tm_val = replace_na(tm_val, 0)
    )|>
  st_as_sf(coords = c("X","Y"), crs = 2056, remove = FALSE)

n_distinct(posmo_valid_filter$datetime)
n_distinct(posmo_valid_filter_clean$datetime)

#### 3.3.3 Temporal sampling interval cleaning

# Calculate timelag
posmo_filter_clean <- posmo_filter_clean |>
  mutate(timelag_s = as.numeric(difftime(lead(datetime), datetime)))

# Look for negative timelag values and visually validate that they are corrective algorith errors, then eliminate these rows incl. NA's
posmo_filter_clean |>
    filter(timelag_s < 0)
posmo_filter_clean |>
    filter(is.na(timelag_s))

# tm_shape(slice(posmo_filter_clean,1261)) +
#   tm_dots() +
#   tm_basemap("Esri.WorldImagery")

posmo_filter_clean <- posmo_filter_clean |>
    filter(timelag_s > 0)

# and the same for the validated data for comparability
posmo_valid_filter_clean <- posmo_valid_filter_clean |>
  mutate(timelag_s = as.numeric(difftime(lead(datetime), datetime)))

posmo_valid_filter_clean <- posmo_valid_filter_clean |>
    filter(timelag_s > 0)

#So what does the timelag between measurement points look like
tail(posmo_filter_clean)
mean(posmo_filter_clean$timelag_s, na.rm = TRUE)
median(posmo_filter_clean$timelag_s, na.rm = TRUE)
min(posmo_filter_clean$timelag_s, na.rm = TRUE)
max(posmo_filter_clean$timelag_s, na.rm = TRUE)

# posmo_filter_clean|>
#   ggplot(aes(timelag_s)) +
#   geom_histogram(binwidth = 1) +
#   lims(x = c(0, 20000)) +
#   scale_y_log10() +
#   scale_x_log10()

# posmo_filter_clean |>
#   ggplot(aes(datetime, timelag_s)) +
#   geom_point() +
#   geom_line()

#### 3.3.4 Outlier detection and removal

#Calculate further features for outlier detection. X = E, Y = N
posmo_filter_clean <- posmo_filter_clean |>
  mutate(steplength_m = sqrt((X-lead(X,1))^2 + (Y-lead(Y,1))^2)) |>
  mutate(speed_ms = steplength_m/timelag_s)
posmo_filter_clean

#Identify and remove outliers
mean(posmo_filter_clean$speed_ms, na.rm = TRUE)
median(posmo_filter_clean$speed_ms, na.rm = TRUE)
min(posmo_filter_clean$speed_ms, na.rm = TRUE)
max(posmo_filter_clean$speed_ms, na.rm = TRUE)

# tm_shape(slice(posmo_filter_clean,1258:1260)) +
#   tm_dots() +
#   tm_basemap("Esri.WorldImagery")

#Speed bellow 220 km/h
posmo_filter_clean |>
    filter(speed_ms > 61.1111)

#and the same for the validated data for comparability
posmo_valid_filter_clean <- posmo_valid_filter_clean |>
  mutate(steplength_m = sqrt((X-lead(X,1))^2 + (Y-lead(Y,1))^2)) |>
  mutate(speed_ms = steplength_m/timelag_s)

posmo_valid_filter_clean |>
    filter(speed_ms > 61.1111)

### 3.4  Resampling

# Create a new df with all necessary time stamps
resamp_timestamps <- seq.POSIXt(from = ceiling_date(min(posmo_filter_clean$datetime), "10 sec"),
                                to = floor_date(max(posmo_filter_clean$datetime), "10 sec"),
                                by = 10)
resamp_timestamps <- as.data.frame(resamp_timestamps)

resamp_timestamps <- resamp_timestamps |>
  as.data.frame() |>
  rename(datetime = resamp_timestamps)

# Combine the df with the resulting df adding rows with NA for the necessary time stamps
posmo_filter_resamp <- posmo_filter_clean |>
  select(datetime, X, Y, tm_unval, geometry) |>
  full_join(resamp_timestamps, by = "datetime") |>
  arrange(datetime)

n_distinct(posmo_filter_resamp$datetime)
sum(n_distinct(posmo_filter_clean$datetime), n_distinct(resamp_timestamps$datetime))

# Linearly interpolate the missing values (coordinates) & Filter to only the resampled rows / For TM the last TM previous TM in the trajectory is used (na.locf)
posmo_filter_approx <- posmo_filter_resamp |>
  st_drop_geometry()|>
  mutate(X = na.approx(X),
         Y = na.approx(Y),
         tm_unval = na.locf(tm_unval)
         ) |>
  filter(second(datetime) %in%  c(0, 10, 20, 30, 40, 50)) |>
  st_as_sf(coords = c("X","Y"), crs = 2056, remove = FALSE)

posmo_filter_approx

# Create a new df with all necessary time stamps
resamp_timestamps_valid <- seq.POSIXt(from = ceiling_date(min(posmo_valid_filter_clean$datetime), "10 sec"),
                                to = floor_date(max(posmo_valid_filter_clean$datetime), "10 sec"),
                                by = 10)
resamp_timestamps_valid <- as.data.frame(resamp_timestamps)

resamp_timestamps_valid <- resamp_timestamps_valid |>
  as.data.frame()# |>
#  rename(datetime = resamp_timestamps_valid)

# Combine the df with the resulting df adding rows with NA for the necessary time stamps
posmo_valid_filter_resamp <- posmo_valid_filter_clean |>
  select(datetime, X, Y, tm_val, geometry) |>
  full_join(resamp_timestamps_valid, by = "datetime") |>
  arrange(datetime)

n_distinct(posmo_valid_filter_resamp$datetime)
sum(n_distinct(posmo_valid_filter_clean$datetime), n_distinct(resamp_timestamps_valid$datetime))

# Linearly interpolate the missing values (coordinates) & Filter to only the resampled rows / For TM the last TM previous TM in the trajectory is used (na.locf)
posmo_valid_filter_approx <- posmo_valid_filter_resamp |>
  st_drop_geometry()|>
  mutate(X = na.approx(X),
         Y = na.approx(Y),
         tm_val = na.locf(tm_val)
         ) |>
  filter(second(datetime) %in%  c(0, 10, 20, 30, 40, 50)) |>
  st_as_sf(coords = c("X","Y"), crs = 2056, remove = FALSE)

posmo_valid_filter_approx

The movement data is then segmented by stops (non-movement periods) in the data using a combination of methods in Laube & Purves (2011) and Sadeghian et al. (2022). Features for segmentation (timelag, steplength, speed) are extracted and static points are defined as no more than an average movement of d = 100m in a moving window of v = 400s with 4 points averaged and a speed not exceeding 2km/h within a window of 30s. These thresholds where chosen based on plotting the segmented data and checking the results against the ground truth data set. Static points and short segments (<60s) are then removed from the data set.

Show the code

## 4. Segmentation

### 4.1 Get an overview

#Get an overview of the data before segmentation
# ggplot(posmo_filter_approx, aes(X,Y, color = datetime)) +
#   geom_point() +
#   geom_path() +
#   coord_equal()

# posmo_filter_approx|>
#   head(50) |>
#   ggplot(aes(datetime, 1)) +
#   geom_point()

### 4.2 (a) Specify a temporal windows v for in which to measure Euclidean distances

#Calculate timelag to figure out a appropriate temporal window
posmo_filter_approx <- posmo_filter_approx|>
  mutate(timelag_s = as.numeric(difftime(lead(datetime), datetime)))

#So what does the timelag between measurement points look like
tail(posmo_filter_approx)
mean(posmo_filter_approx$timelag_s, na.rm = TRUE)
median(posmo_filter_approx$timelag_s, na.rm = TRUE)
min(posmo_filter_approx$timelag_s, na.rm = TRUE)
max(posmo_filter_approx$timelag_s, na.rm = TRUE)

### 4.3 (b) Measure the distance from every point to every other point within this temporal window v

#Measure the euclid. distance to 100s and 200s forward and backwards (the temporal window beeing 400s)
posmo_filter_approx <- posmo_filter_approx |>
  mutate(
    n_plus10 = sqrt((lead(X,10) - X)^2 + (lead(Y,10) - Y)^2),
    n_plus20 = sqrt((lead(X,20) - X)^2 + (lead(Y,20) - Y)^2),
    n_minus10 = sqrt((lag(X,10) - X)^2 + (lag(Y,10) - Y)^2),
    n_minus20 = sqrt((lag(X,20) - X)^2 + (lag(Y,20) - Y)^2),
    steplength_m = sqrt((X-lead(X,1))^2 + (Y-lead(Y,1))^2),
    speed_ms = steplength_m/timelag_s
  )

#Calculate the mean steplenth between these points from this temporal window
posmo_filter_approx <- posmo_filter_approx |>
  rowwise() |>
  mutate(
    stepMean = mean(c(n_minus10, n_minus20, n_plus10, n_plus20))
  ) |>
  ungroup()

### 4.4 (c) Remove “static points”

#Visualize the data in a histogram to see if the mean steplength is appropriate for stationary points and to determine an appropriate distance threshold
# ggplot(posmo_filter_approx, aes(stepMean)) +
#   geom_histogram(binwidth = 10) +
#   geom_vline(xintercept = median(posmo_filter$stepMean, na.rm = TRUE))

#To find a good threshold, I tried different distances which I would realistically travel when not being stationary --> d = 100m

#Set points to static if within the temporal window v = 400s they move on average (of 4 points) less then d = 100m and the is less then 2km/h for all point within min. 30s
posmo_filter_segm <- posmo_filter_approx |>
    ungroup() |>
    mutate(
      static = (stepMean < 100) | (lead(speed_ms,1) < 0.555555 & lead(speed_ms,2) < 0.555555 & lag(speed_ms,1) < 0.555555 & lag(speed_ms,2) < 0.555555)) |>
    drop_na(static)

### 4.5 Visualize stops

#Visualize the stops to check if they line up with ground truth
# ggplot(posmo_filter_segm, aes(X,Y)) +
#   geom_path() +
#   geom_point(aes(color = static)) +
#   coord_equal()
#
# tm_shape(posmo_filter_segm) +
#   tm_dots(col = "static") +
#   tm_basemap("Esri.WorldImagery")

### 4.6 Segment-based analysis (segmentation at stationary points)

#Create function for segmentation at the stationary points
rle_id <- function(vec) {
    x <- rle(vec)$lengths
    as.factor(rep(seq_along(x), times = x))
}

# and run the function on the data:
posmo_filter_segm <- posmo_filter_segm |>
    mutate(segment_id = rle_id(static))

head(posmo_filter_segm)

### 4.7 Visualize segmented trajectories

#Visualize the segmented trajectories
# ggplot(posmo_filter_segm, aes(X,Y)) +
#   geom_path() +
#   geom_point(aes(color = segment_id)) +
#   coord_equal()
#
# tm_shape(posmo_filter_segm) +
#   tm_dots(col = "segment_id") +
#   tm_basemap("Esri.WorldImagery")

# Seems to line up well with ground truth for that day and the trips I took. If I would want to improve the segmentation, I would have to compare the details with reality and maybe smoothen out the differences in timelags.

#Remove short segments with a duration of less than 60s and static points
posmo_filter_short_segm <- posmo_filter_segm |>
  group_by(segment_id)|>
  summarise(
    seg_length = sum(timelag_s, na.rm = TRUE)
  ) |>
  ungroup()|>
  mutate(
    short = seg_length < 60
  ) |>
  select(segment_id, short) |>
  st_drop_geometry()

posmo_filter_segm_clean <- posmo_filter_segm |>
  left_join(posmo_filter_short_segm, by = "segment_id") |>
  filter(static == FALSE) |>
  filter(short == FALSE) |>
  select(datetime, X, Y, geometry, segment_id, tm_unval)

#Visualize to check
# tm_shape(posmo_filter_segm_clean) +
#   tm_dots(col = "segment_id") +
#   tm_basemap("Esri.WorldImagery")

unique(posmo_filter_segm_clean$segment_id)

After segmentation, further features are extracted from the trajectory. These are speed, acceleration, azimuth and sinuosity. They are also summarized by segment (minimum, maximum and mean) and rejoined with the full data set.

Show the code

## 5. Feature extraction

### 5.1 Feature extraction on the raw point data

# Feature extraction on the raw point data
posmo_filter_segm_clean <- posmo_filter_segm_clean |>
  mutate(timelag_s = as.numeric(difftime(lead(datetime), datetime)),
         steplength_m = sqrt((X-lead(X,1))^2 + (Y-lead(Y,1))^2),
         speed_ms = steplength_m/timelag_s,
         acc_mss = as.numeric(speed_ms - (lead(speed_ms)) / timelag_s),
         long = st_coordinates(st_transform(posmo_filter_segm_clean, 4326))[,1],
         lat = st_coordinates(st_transform(posmo_filter_segm_clean, 4326))[,2],
         azi = c(st_azimuth(head(st_geometry(posmo_filter_segm_clean),-1),
                            head(lead(st_geometry(posmo_filter_segm_clean),1),-1)),NA)
         ) |>
  rowid_to_column(var = "id") |>
  drop_na()

### 5.2 Feature extraction & summary by segment

# Feature extraction summarized on a segment level
posmo_filter_segm_sry <- posmo_filter_segm_clean |>
  group_by(segment_id)|>
  summarise(
    avgspeed_ms = mean(speed_ms, na.rm = TRUE),
    avgacc_mss = mean(acc_mss, na.rm = TRUE),
    maxspeed_ms = max(speed_ms, na.rm = TRUE),
    minspeed_ms = min(speed_ms, na.rm = TRUE),
    maxacc_mss = max(acc_mss, na.rm = TRUE),
    minacc_mss = min(acc_mss, na.rm = TRUE),
    seg_dist_m = sum(steplength_m, na.rm = TRUE),
    seg_time_s = sum(timelag_s, na.rm = TRUE)
  )

#And calculate sinuosity (for random walk) using a for loop
iter <- unique(posmo_filter_segm_clean$segment_id)
iter_i <- seq_along(iter)
sin <- numeric(length = length(iter))

for (seg_i in iter_i){
  print(seg_i)
    seg <- iter[seg_i]

    mysin <- posmo_filter_segm_clean |>
    filter(segment_id == seg) |>
    select(X, Y) |>
    TrajFromCoords() |>
    TrajSinuosity()

  sin[seg_i] <- mysin
  print(mysin)
}

posmo_filter_segm_sry$sinuosity <- sin

# next time use purrr
# Also in the future, directed walk should be used but this would require to extract starting and endpoints of trajectories (an I ran out of time)

From Sadeghian et al. (2022) and validated data comparison we found that spatial MCA is accurate at identifying walking segments. Walking segments are assigned with the following criteria (Sadeghian et al., 2022): 1. segment’s average speed must not exceed 6 km/h 2. maximum speed of all points in the segment must be below 12 km/h 3. if 90% of points within a segment are classified as “walking”, the full segment is assigned the walking mode

Show the code

## 6. Preliminary multi criteria analysis to eliminate walking segments

#Add the segment-specific features back into the point data
posmo_filter_segm_clean <- left_join(posmo_filter_segm_clean, st_drop_geometry(posmo_filter_segm_sry), by = "segment_id")

#Label point as walks if: (1) segment’s average speed must not exceed 6 km/h and (2)    maximum speed of all points in the segment must be below 12 km/h
posmo_filter_segm_walks <- posmo_filter_segm_clean |>
  mutate(
    walks = seg_time_s > 60 & avgspeed_ms <= 1.66666 & maxspeed_ms < 3.33333
  )

#Visualize only walks to check the results
# posmo_filter_segm_onlywalks <- posmo_filter_segm_walks |>
#   filter(walks == TRUE)
# tm_shape(posmo_filter_segm_onlywalks) +
#   tm_dots(col = "walks") +
#   tm_basemap("Esri.WorldImagery")

#Summarize to label whole segments als walking segments if 90% of points within a segment are classified as “walking”
posmo_filter_segm_onlywalks_sry <- posmo_filter_segm_walks |>
  st_drop_geometry()|>
  group_by(segment_id)|>
  summarise(
    walk_true = sum(walks == TRUE),
    walk_false = sum(walks == FALSE)
  )|>
  mutate(
    walk_seg = (walk_true / walk_false) > 0.9
    ) |>
  select(segment_id, walk_seg)

#Add the summarised segment label back into point data
posmo_filter_segm_walks <- left_join(posmo_filter_segm_walks, posmo_filter_segm_onlywalks_sry, by = "segment_id")
posmo_filter_segm_nowalks <- filter(posmo_filter_segm_walks, walk_seg == FALSE)
posmo_filter_segm_onlywalks <- filter(posmo_filter_segm_walks, walk_seg == TRUE)

For the next step in (Sadeghian et al., 2022) methodology, we used an unsupervised learning algorithm (K-means clustering) to cluster the full data set (excl. walking segments) into 4 clusters (i.e. bus/tram, train, bike and car) based on the aforementioned extracted features. As these clusters did no correspond well enough with validated TM, this step was later discarded for TMD.

Show the code

## 7. Unsupervised algorithm using k-means clustering

#Run kmeans clustering on the point data without walks with 4 Clusters (train, car, bike, bus/tram)
posmo_filter_seg_kmeans4 <- posmo_filter_segm_nowalks |>
  st_drop_geometry() |>
  select(steplength_m, speed_ms, acc_mss, sinuosity, avgspeed_ms) |>
  data.matrix() |>
  kmeans(4)

#Check the clusters
posmo_filter_seg_kmeans4


#Add cluster number to data frame
posmo_filter_seg_cluster <- posmo_filter_segm_nowalks |>
  mutate(
    kmeans4 = posmo_filter_seg_kmeans4$cluster
  )

#Check if the Clusters are destinct enought to manually assign them a TM
posmo_filter_seg_kmeans4
figure_3 <- posmo_filter_seg_cluster |>
  filter(as.Date(datetime) == "2023-06-03") |>
  tm_shape() +
  tm_dots(col = "kmeans4",
          palette = "Set2")

# posmo_filter_seg_cluster |>
#   filter(as.Date(datetime) == "2023-06-15") |>
#   tm_shape() +
#   tm_dots(col = "kmeans4") +
#   tm_basemap("Esri.WorldImagery")

#Test for non-multi-clusterd segments from the kmeans clusterin
test <- posmo_filter_seg_cluster |>
  group_by(segment_id)|>
  summarise(
    avgspeed_ms = mean(speed_ms, na.rm = TRUE),
    avgacc_mss = mean(acc_mss, na.rm = TRUE),
    maxspeed_ms = max(speed_ms, na.rm = TRUE),
    minspeed_ms = min(speed_ms, na.rm = TRUE),
    maxacc_mss = max(acc_mss, na.rm = TRUE),
    minacc_mss = min(acc_mss, na.rm = TRUE),
    seg_dist_m = sum(steplength_m, na.rm = TRUE),
    seg_time_s = sum(timelag_s, na.rm = TRUE),
    seg_clear = all(min(kmeans4) == max(kmeans4), na.rm = TRUE)
  )

# test |>
#   filter(seg_clear == TRUE) |>
#   tm_shape() +
#   tm_dots(col = "segment_id") +
#   tm_basemap("Esri.WorldImagery")

table_2 <- data.frame(posmo_filter_seg_kmeans4$centers) |>
  mutate(
    "Number of points" = posmo_filter_seg_kmeans4$size,
    steplength_m = round(steplength_m, 2),
    speed_ms = round(speed_ms, 2),
    acc_mss = round(acc_mss, 2),
    sinuosity = round(sinuosity, 2),
    avgspeed_ms = round(avgspeed_ms, 2)
  ) |>
  rename("Steplength (m)" = steplength_m,
         "Speed (m/s)" = speed_ms,
         "Acceleration (m/s/s)" = acc_mss,
         "Sinuosity" = sinuosity,
         "Avg. speed (m/s)" = avgspeed_ms
         )
# table_2

posmo_filter_seg_kmeans4$centers

#--> only non-multi classified segments are previously undetected walking segments. There seems to be a issue of scale, the kmeans should be run on a moving window or the sampling rate needs to change. Alternatively a threshoild could be set. However, since the Clusters cannot be easly assigned a TM anyway, this would need much more tweaking than we have time for.

From here, further MCA was used to assign bike, train, bus (incl. tram) and car modes with the following criteria:

1. Segments average speed must be below 25 km/h for bike and 88km/h for bus or higher than 15km/h for cars
2. The maximum speed of all point in the segment must not exceed 40 km/h for bike, 100 km/h for bus and 130 km/h for car
3. The points must be within 10 m from a railway line for train, 15 m from a bus or tram line for bus and 25 m from a main road for car
4. The total distance travelled in a segment must be below 20 km for bikes

Show the code

## 8. GIS multi-criteria process

### 8.1 Bike mode detection

# Label point as bike if: (1) segment’s average speed must be below 25km/h, (2) maximum speed of all points in the segment must not exceed 40km/h and (3)   the total distance traveled in a segment must be below 20km
posmo_filter_segm_bike <- posmo_filter_segm_walks |>
  mutate(
    bike = avgspeed_ms < 6.944 & maxspeed_ms <= 11.111 & seg_dist_m < 20000
  )

#Visualize only bike to check the results
 posmo_filter_segm_onlybike <- posmo_filter_segm_bike |>
   filter(bike == TRUE)
 posmo_filter_segm_nobike <- posmo_filter_segm_bike |>
   filter(bike == FALSE)

 # tm_shape(posmo_filter_segm_onlybike) +
 #   tm_dots(col = "bike") +
 #   tm_basemap("Esri.WorldImagery")


### 8.2 Train mode detection

#create a buffer of 10m around the train routes from swissTLMRegio railway lines
trains_buffer <- train_routes |>
  st_buffer(10) |>
  st_union()

#Visualize to check
# tm_shape(trains_buffer) +
#   tm_polygons() +
#   tm_basemap("Esri.WorldImagery")

# Label point as train if: (1) the points must be within 10m of a railway line (based on swissTLMRegio railway lines)
posmo_filter_segm_train <- posmo_filter_segm_bike |>
  mutate(
    train = st_within(posmo_filter_segm_bike, trains_buffer, sparse = FALSE)
  )

#Visualize only train to check the results
posmo_filter_segm_onlytrains <- posmo_filter_segm_train |>
  filter(train == TRUE)
posmo_filter_segm_notrains <- posmo_filter_segm_train |>
  filter(train == FALSE)

# tm_shape(posmo_filter_segm_onlytrains) +
#   tm_dots(col = "train") +
#   tm_basemap("Esri.WorldImagery")


### 8.3 Bus mode detection

#Create a buffer of 15m around the bus and tram routes from ZVV
bus_buffer <- bus_routes |>
  st_buffer(15) |>
  st_union()

#Visualize to check
# tm_shape(bus_buffer) +
#   tm_polygons() +
#   tm_basemap("Esri.WorldImagery")

# Label point as bus if: (1) the points must be within 15m of a bus or tram line (based on ZVV public transport lines excl. trains), (2)    segment’s average speed must be below 88km/h and (3)    maximum speed of all points in the segment must not exceed 100km/h
posmo_filter_segm_bus <- posmo_filter_segm_train |>
  mutate(
    bus = st_within(posmo_filter_segm_train, bus_buffer, sparse = FALSE) & avgspeed_ms < 24.4444 & maxspeed_ms <= 27.7778
  )

#Visualize only bus to check the results
posmo_filter_segm_onlybus <- posmo_filter_segm_bus |>
  filter(bus == TRUE)
posmo_filter_segm_nobus <- posmo_filter_segm_bus |>
  filter(bus == FALSE)

# tm_shape(posmo_filter_segm_onlybus) +
#   tm_dots(col = "bus") +
#   tm_basemap("Esri.WorldImagery")


### 8.4 Car mode detection

#create a buffer of 25m around the main roads from swissTLMRegio road lines
road_buffer <- roads |>
  st_buffer(25) |>
  st_union()

#Visualize to check
# tm_shape(road_buffer) +
#   tm_polygons() +
#   tm_basemap("Esri.WorldImagery")

# Label point as car if: (1)    the points must be within 25m of a main road (based on swissTLMRegio roads), (2)    segment’s average speed must be higher than 15km/h and (3)  maximum speed of all points in the segment must not exceed 130km/h
posmo_filter_segm_car <- posmo_filter_segm_bus |>
  mutate(
    car = st_within(posmo_filter_segm_bus, road_buffer, sparse = FALSE) & avgspeed_ms > 4.16667 & maxspeed_ms <= 36.1111
  )

#Visualize only bus to check the results
posmo_filter_segm_onlycar <- posmo_filter_segm_car |>
  filter(car == TRUE)
posmo_filter_segm_nocar <- posmo_filter_segm_car |>
  filter(car == FALSE)

# tm_shape(posmo_filter_segm_onlycar) +
#   tm_dots(col = "car") +
#   tm_basemap("Esri.WorldImagery")

Overall, if more than 90% of points within segments were classified as belonging to bike, bus or train, the segment is classified as such. Where this is true for multiple transport modes, it is classified as unknown. 50% of points need to be assigned the car mode for the segment to be designated a car segment. If a segment is both classified as bus and car acc. to the criteria, the segment is assigned the bus mode.

Show the code

### 8.5 Implement on segment level

#Implement all of this on a segment level an label segments as follows: if more than 90% of points within segments were classified as belonging to bike, bus or train, the segment is classified as such. Where this is true for multiple transport modes, it is classified as unknown. As the swissTLMRegio data set only includes main roads, only more than 50% of points need to be assigned the car mode for the segment to be designated a car segment. If a segment is both classified as bus and car acc. to the criteria, the segment is assigned the bus mode.

posmo_filter_segm_mca_sry <- posmo_filter_segm_car |>
  st_drop_geometry()|>
  group_by(segment_id)|>
  summarise(
    bike_true = sum(bike == TRUE),
    bike_false = sum(bike == FALSE),
    train_true = sum(train == TRUE),
    train_false = sum(train == FALSE),
    bus_true = sum(bus == TRUE),
    bus_false = sum(bus == FALSE),
    car_true = sum(car == TRUE),
    car_false = sum(car == FALSE)
  )|>
  mutate(
    bike_seg = (bike_true / bike_false) > 0.9,
    train_seg = (train_true / train_false) > 0.9,
    bus_seg = (bus_true / bus_false) > 0.9,
    car_seg = (car_true / car_false) > 0.5
    ) |>
  select(segment_id, bike_seg, train_seg, bus_seg, car_seg)

#Add walking segment labels into the summary and add the segment labels back into the point data set
posmo_filter_segm_mca_sry <- left_join(posmo_filter_segm_mca_sry, posmo_filter_segm_onlywalks_sry, by = "segment_id")
posmo_filter_segm_mca <- left_join(select(posmo_filter_segm_car, -walk_seg), posmo_filter_segm_mca_sry, by = "segment_id")
posmo_filter_segm_mca

#Label the segments based on the critera above
posmo_filter_segm_mca <- posmo_filter_segm_mca |>
  mutate(
    tm_own = ifelse(walk_seg == TRUE, 1,
              ifelse(bike_seg == TRUE & train_seg == FALSE & bus_seg == FALSE, 5,
                ifelse(bike_seg == FALSE & train_seg == TRUE & bus_seg == FALSE, 4,
                  ifelse(bike_seg == FALSE & train_seg == FALSE & bus_seg == TRUE, 3,
                    ifelse(bike_seg == FALSE & train_seg == FALSE & bus_seg == FALSE & car_seg == TRUE, 2, 0)))))
  )

#Check the results. Good dates for Verification are 2023-05-13 (long bike track) and 2023-04-13 (ÖV and car)
sum(posmo_filter_segm_mca$tm_own == 0, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_own == 1, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_own == 2, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_own == 3, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_own == 4, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_own == 5, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_own == 6, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_own == 7, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_own == 8, na.rm = TRUE)

# posmo_filter_segm_mca |>
#   filter(as.Date(datetime) == "2023-05-13") |>
#   tm_shape() +
#   tm_dots(col = "tm_own") +
#   tm_basemap("Esri.WorldImagery")

The results of this TMD are then compared to both the validated TM and the POSMO assigned TM.

Show the code

## 9. Analysis

#To few training data an modelling experience to properly implement random Forest algorithm

### 9.1 Join all versions of TMD

#Join all Versions of TMD into one data set
posmo_valid_filter_sel <- posmo_valid_filter_approx |>
  select(datetime, tm_val) |>
  st_drop_geometry()

#Change tram (6) in the posmo and validated data set to bus (3), because in our MCA this is not differentiated & make sure it's changed
sum(posmo_valid_filter_sel$tm_val == 6, na.rm = TRUE)
sum(posmo_valid_filter_sel$tm_val == 3, na.rm = TRUE)

posmo_valid_filter_sel$tm_val[posmo_valid_filter_sel$tm_val == 6] <- 3
posmo_filter_segm_mca$tm_unval[posmo_filter_segm_mca$tm_unval == 6] <- 3

sum(posmo_valid_filter_sel$tm_val == 6, na.rm = TRUE)
sum(posmo_valid_filter_sel$tm_val == 3, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_unval == 6, na.rm = TRUE)
sum(posmo_filter_segm_mca$tm_unval == 3, na.rm = TRUE)

#calculate accuracy per row for POSMOs TMD und our TMD compared to the validated data set
tm_compare <- posmo_filter_segm_mca |>
  select(datetime, tm_unval, tm_own) |>
  left_join(posmo_valid_filter_sel, by = "datetime") |>
  mutate(
    tm_own_correct = as.integer(as.logical(tm_own == tm_val)),
    tm_posmo_correct = as.integer(as.logical(tm_unval == tm_val))
  )

### 9.2 Compare versions of TMD

#Calculate accuracy overall
sum(tm_compare$tm_posmo_correct)/nrow(tm_compare)
sum(tm_compare$tm_own_correct)/nrow(tm_compare)

#Calculate accuracy by TM and summaries everything
tm_compare_sry <- tm_compare |>
  st_drop_geometry()|>
  group_by(tm_val)|>
  summarise(
    n_points = n(),
    posmo_correct_tot = sum(tm_posmo_correct),
    own_correct_tot = sum(tm_own_correct)
  ) |>
  ungroup() |>
  rename(numbers = tm_val) |>
  left_join(select(all_transport_modes, -transport_mode), by = "numbers") |>
  rename(tm_code = numbers) |>
  head(-1) |>
  adorn_totals("row") |>
  mutate(
    posmo_correct_pct = posmo_correct_tot / n_points * 100,
    own_correct_pct = own_correct_tot / n_points * 100
  ) |>
  relocate(names, .after = tm_code)

tm_compare_sry

#Put accuracy into a nice comparison table
table_1 <- tm_compare_sry |>
  mutate(
    posmo_correct_pct = round(posmo_correct_pct),
    own_correct_pct = round(own_correct_pct)
  ) |>
  rename("TM Code" = tm_code,
         "TM Name" = names,
         "Number of Points" = n_points,
         "Correct TM POSMO" = posmo_correct_tot,
         "Correct TM New" = own_correct_tot,
         "Accuracy rate POSMO (%)" = posmo_correct_pct,
         "Accuracy rate New (%)" = own_correct_pct
         )
# table_1


### 9.3 Visualizations

#Visualize the tracking data with the different TMDs as a comparison

#Add easily readable labels
tm_labels <- data.frame(c(0, 1, 2, 3, 4, 5), c("Unkonwn", "Walk", "Car", "Bus & Tram", "Train", "Bike"))
tm_compare_label <- tm_compare |>
  filter(tm_val <= 5) |>
  mutate(
    "Transport Modes Ground Truth" = ifelse(tm_val == 0, "Unkonwn",
                         ifelse(tm_val == 1, "Walk",
                           ifelse(tm_val == 2, "Car",
                             ifelse(tm_val == 3, "Bus & Tram",
                               ifelse(tm_val == 4 , "Train",
                                 ifelse(tm_val == 5, "Bike",
                                        0)))))),
    "Transport Modes POSMO" = ifelse(tm_unval == 0, "Unkonwn",
                         ifelse(tm_unval == 1, "Walk",
                           ifelse(tm_unval == 2, "Car",
                             ifelse(tm_unval == 3, "Bus & Tram",
                               ifelse(tm_unval == 4 , "Train",
                                 ifelse(tm_unval == 5, "Bike",
                                        0)))))),
    "Transport Modes MCA" = ifelse(tm_own == 0, "Unkonwn",
                         ifelse(tm_own == 1, "Walk",
                           ifelse(tm_own == 2, "Car",
                             ifelse(tm_own == 3, "Bus & Tram",
                               ifelse(tm_own == 4 , "Train",
                                 ifelse(tm_own == 5, "Bike",
                                        0))))))
      )

tm_compare_label$`Transport Modes Ground Truth` <- factor(tm_compare_label$`Transport Modes Ground Truth`, levels = c("Unkonwn", "Walk", "Car", "Bus & Tram", "Train", "Bike"), ordered = TRUE)
tm_compare_label$`Transport Modes POSMO` <- factor(tm_compare_label$`Transport Modes POSMO`, levels = c("Unkonwn", "Walk", "Car", "Bus & Tram", "Train", "Bike"), ordered = TRUE)
tm_compare_label$`Transport Modes MCA` <- factor(tm_compare_label$`Transport Modes MCA`, levels = c("Unkonwn", "Walk", "Car", "Bus & Tram", "Train", "Bike"), ordered = TRUE)

#Visualize in a facetted tmap figure
figure_2 <- tm_compare_label |>
  filter(as.Date(datetime) == "2023-06-03") |>
  tm_shape() +
  tm_dots(col = c("Transport Modes POSMO", "Transport Modes MCA", "Transport Modes Ground Truth"),
          palette = "Set2") +
  tm_facets(nrow = 2, sync = TRUE)
# figure_2

Results

The MCA, which ended up being the only implemented algorithm in the stepwise procedure by Sadeghian et al. (2022), was 45% accurate in assigning TM when compared to the manually validated ground truth data.

Show the code

figure_2

Figure 2: Comparison of POSMO TM and our own MCA TM (top) and the ground truth TM (bottom) for the 3rd of June 2023 on a map

The TMD as specified in this project is overall less accurate than to the POSMO-integrated TMD when compared to the validated data, with 45% vs. 60%.

Show the code

table_1

Table 1: Confusion matrix of transport mode detection and accuracy rates for POSMO TMD vs. described GIS multi-criteria process

K-means clustering as implemented on the raw data excl. walking segments directly did not yield clearly assigned segments. The clusters cannot be intuitively attributed to the transport modes and the only non-multiclassified clusters (all points the same cluster), when compared to the validated TM, are short walking segments that where not assigned by the MCA.

Show the code

table_2

Table 2: Clusters from K-means analysis (K= 4)

Show the code

figure_3

Figure 3: Example of K-means clusters for the 3rd of June 2023 on a map

Discussion

Due to the mentioned limitations, the TMD for this project could not be further optimized. Therefore, a more detailed statistical evaluation is not carried out, as we only used these results and experiences from the implementation for the discussion of possible improvement paths. For any further work, spatial statistics, correlation analysis and Bayesian accuracy assessments (Magnussen, 2009) are suggested.

Given more time to experiment with different settings, thresholds and window sizes, the utilized TMD could still be significantly improved.

The third step in the Sadeghian et al. (2022) stepwise procedure, the Random Forest supervised learning algorithm, could not be implemented in this project, due to a lack of exactly segmented training data and lack of modelling experience with machine learning.

However, the implementation of the TMD algorithms allowed us to broadly assess the difficulties associated with these algorithms and GPS trajectory data. With the results and literature on the topic we could suggest paths for further improvement of TMD from POSMO data.

If the accuracy of POSMOs TMD and the one calculated in this project are compared, the difference is 15% points. With certain TMs, the accuracy of the TMD in this project is higher than POSMOs, e.g. with bus/tram detection, where the accuracy of the MCA is 85% vs. 33% in POSMO. Considering limited optimisation of the implemented algorithm, the accuracy is higher than expected for our analysis. Given that POSMO’s TMD uses further data, such as public transport timetables that we could not implement with the time constraints, our quick implementation came close to POSMOs accuracy. This shows room for improvement with the POSMO TMD.

There are multiple paths to improve the described MCA further, starting with a more complete road network data set. The one used only contains major roads. Elevation models could also be an useful for better bike mode detection, with more specific threshold for uphill sections.

The use of public transportation schedules (i.e. arrival and departure times for public transport lines) can also potentially improve the accuracy of the TMD by using them as a reference for predicting the transportation mode in MCA, as demonstrated by Sadeghian et al. (2022). This depends largely on accurate segmentation to determine the correct beginning and end of a trip. POSMO also seems to struggle with this, e.g. not segmenting from tram to bus (example in Figure 4).

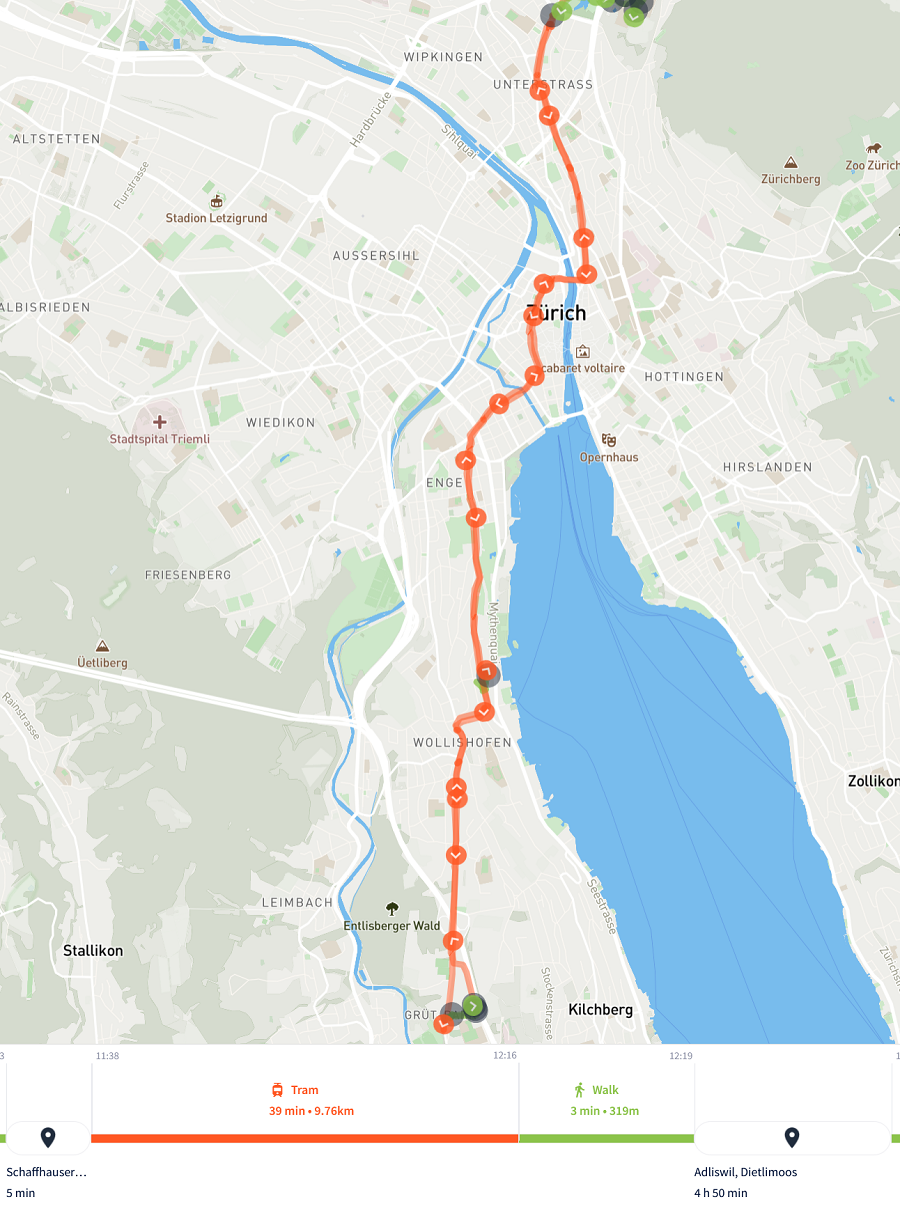

Figure 4: Example of incorrectly segmented trajectory in the POSMO on the 7th of June (Screenshot from the 17th of June, source: https://posmo.datamap.io/posmo-project)

To avoid this challenge of making the criteria solely dependent on beginning and end of segments, we suggest constructing artificial trajectories for all public transport lines based on the schedule e.g. using the “traj” package with its “TrajGenerate” function (McLean & Skowron Volponi, 2018) or more complex methods for trajectory prediction from autonomous driving research (Rossi et al., 2021). The tracking data segments can be compared to these artificial public transport trajectories with spatio-temporal similarity measures such as Longest Common Subsequence (Vlachos et al., 2002).

For K-means clustering, the sampling rate appears to have a big impact on classification. With small time differences between point (10s) the data is too noisy to be classified into clear groups because the differences between points of the same TM often bigger than between TMs. This could be rectified by tweaking the sampling rate or using moving windows as with segmentation. However, this would entail finding appropriate thresholds and window size. K-means clustering also seems to struggle with outliers, therefore improved outlier detection could also improve the clustering performance (Google, 2022). Clustering will most likely also perform better with a bigger trajectory data set.

Another promising way to improve identification of TM is the use of Bayesian inference. In the MCA, there is usually a fixed threshold needed to assign TM, e.g. if 90% of points are categorizes as “Bus” based on the criteria the segment is categorizes as such. Using probabilities for different transport modes instead with Bayesian inference, as done in Bachir et al. (2019), could yield much better results. For static point detection and segmentation in these standstill sections, the speed and the distance moved was used. These thresholds were determined with the help of fixed values after several trials. As this is not ideal for algorithms or machine learning, other methods using similarity patterns should be considered as mentioned in Zhu et al. (2016).

Many of the algorithms for segmentation, learning algorithms and MCA need thresholds and windows to be set to best describe the patterns of certain transport modes. This can be done by endlessly tweaking with trial and error using validated sample data. As we found this is time inefficient and may only be optimised for the validated sample data persons movement type (e.g. if that person never rides bikes, the algorithm will not be able to accurately detect bike mode). A possible solution to this, would be machine learning algorithms and a large ground truth data set for a variety of movement types (people of all ages, backgrounds, activity profiles, living and working environment, etc.). Machine learning algorithms (or often deep learning algorithms) have been shown to significantly improve TMD from GPS data (Giri et al., 2022; Sadeghian et al., 2021, 2022; Wan et al., 2020; Zhu et al., 2016). This however seems to be very dependent on good training data as mentioned above.

An improvement for the app could also be the inclusion of different sensors of the smartphone. For example, it could be easier to detect the TM if the accelerometer would be included. One challenge with accelerometer walking detection is, that hand movement may lead to wrong conclusions. But with an integration and communication between GPS and the accelerometer a long-term recording could detect the transport mode more accurately in real time (Allahbakhshi et al., 2020; Bayat et al., 2014; Javed et al., 2020; Wan et al., 2020).

Sources

Data

POSMO Project GPS tracking data (2023), CSV-File, data of one person between 2023-04-11 10:50:01 and 2023-06-15 22:00:00, validated and unvalidated version, https://posmo.datamap.io/posmo-project (downloaded on 2023-06-17)

swissTLMRegio.gdb (2022). GDB-File, Feature Class Railway and “KANTONSGEBIET”, https://www.swisstopo.admin.ch/de/geodata/landscape/tlmregio.html (downloaded on 2023-06-17), Metadata: (swisstopo, 2022a, 2022b)

Linien_des_offentlichen_Verkehrs_-OGD (2023), GPKG-Datei (Geopackage), tram and bus lines ZVV, http://maps.zh.ch/?topic=ZvvLinienZH (downloaded on 2023-06-17), Metadata: (Verkehrsbetriebe Zürich VBZ, 2022)

Literature

Allahbakhshi, H., Conrow, L., Naimi, B., & Weibel, R. (2020). Using Accelerometer and GPS Data for Real-Life Physical Activity Type Detection. Sensors, 20(3), 588.

Bachir, D., Khodabandelou, G., Gauthier, V., El Yacoubi, M., & Puchinger, J. (2019). Inferring dynamic origin-destination flows by transport mode using mobile phone data. Transportation Research Part C: Emerging Technologies, 101, 254–275.

Bayat, A., Pomplun, M., & Tran, D. A. (2014). A Study on Human Activity Recognition Using Accelerometer Data from Smartphones. Procedia Computer Science, 34, 450–457.

Genossenschaft Posmo Schweiz. (2023). Posmo—Datengenossenschaft für nachhaltige Mobilität—Datamap. https://posmo.datamap.io/posmo-project

Giri, S., Brondeel, R., El Aarbaoui, T., & Chaix, B. (2022). Application of machine learning to predict transport modes from GPS, accelerometer, and heart rate data. International Journal of Health Geographics, 21(1), 19.

Google. (2022, July 18). K-Means Advantages and Disadvantages | Machine Learning. Google for Developers. https://developers.google.com/machine-learning/clustering/algorithm/advantages-disadvantages

Javed, A. R., Sarwar, M. U., Khan, S., Iwendi, C., Mittal, M., & Kumar, N. (2020). Analyzing the Effectiveness and Contribution of Each Axis of Tri-Axial Accelerometer Sensor for Accurate Activity Recognition. Sensors (Basel, Switzerland), 20(8), 2216.

Laube, P., & Purves, R. S. (2011). How fast is a cow? Cross-Scale Analysis of Movement Data. Transactions in GIS, 15(3), 401–418.

Magnussen, S. (2009). A Bayesian approach to classification accuracy inference. Forestry: An International Journal of Forest Research, 82(2), 211–226.

McLean, D. J., & Skowron Volponi, M. A. (2018). trajr: An R package for characterisation of animal trajectories. Ethology, 124(6), 440–448.

Rossi, L., Ajmar, A., Paolanti, M., & Pierdicca, R. (2021). Vehicle trajectory prediction and generation using LSTM models and GANs. PLOS ONE, 16(7).

Sadeghian, P., Håkansson, J., & Zhao, X. (2021). Review and evaluation of methods in transport mode detection based on GPS tracking data. Journal of Traffic and Transportation Engineering (English Edition), 8(4), 467–482.

Sadeghian, P., Zhao, X., Golshan, A., & Håkansson, J. (2022). A stepwise methodology for transport mode detection in GPS tracking data. Travel Behaviour and Society, 26, 159–167.

swisstopo. (2022a). SwissTLMRegio Boundaries—Produktinformation—Administrative Grenzen der Schweiz und des nahen Auslands (TLMRegio_BOUND d 01/2022). Bundesamt für Landestopografie.

swisstopo. (2022b). SwissTLMRegio—Produktinformation—Das kleinmassstäbliche digitale Landschaftsmodell der Schweiz (swissTLMRegio d 10/2022). Bundesamt für Landestopografie.

Van der Spek, S., Van Schaick, J., De Bois, P., & De Haan, R. (2009). Sensing Human Activity: GPS Tracking. Sensors, 9(4), 3033–3055.

Verkehrsbetriebe Zürich VBZ. (2022). Produktblatt Geodatensatz—Linien des öffentlichen Verkehrs—GeoLion: Geodatenkatalog / Geometadaten (No. 108). Kanton Zürich - Geographisches Informationssystem GIS-ZH. http://maps.zh.ch/?topic=ZvvLinienZH

Vlachos, M., Kollios, G., & Gunopulos, D. (2002). Discovering similar multidimensional trajectories. Proceedings 18th International Conference on Data Engineering, 673–684.

Wan, S., Qi, L., Xu, X., Tong, C., & Gu, Z. (2020). Deep Learning Models for Real-time Human Activity Recognition with Smartphones. Mobile Networks and Applications, 25(2), 743–755.

Zeileis, A., Grothendieck, G., Ryan, J. A., Ulrich, J. M., & Andrews, F. (2023). Package ‘zoo’—Reference manual—S3 Infrastructure for Regular and Irregular Time Series (Z’s Ordered Observations). Comprehensive R Archive Network (CRAN).

Zhu, X., Li, J., Liu, Z., Wang, S., & Yang, F. (2016). Learning Transportation Annotated Mobility Profiles from GPS Data for Context-Aware Mobile Services. 2016 IEEE International Conference on Services Computing (SCC), 475–482.
